India aims to become a semiconductor manufacturing hub. What are the challenges faced by the semiconductor industry in India? Mention the salient features of the India Semiconductor Mission.

Topic: Indian Economy. Syllabus: Indian Economy and issues relating to planning, mobilization of resources, growth, development and employment. Same official PYQ from year-wise 2025 and Indian Economy.

Revision summary

India designs many chips but still makes few, because fabs need capital, ultra-pure water, chemicals and restricted tools. Geopolitics and long project time add risk. The India Semiconductor Mission (2021) has about ₹76,000 crore for fabs, display, compound semiconductors and packaging. A design-linked incentive targets the talent India already has. Mature nodes and ATMP are the realistic near path; leading-edge logic will follow slowly if at all.

Model answer

Copper italics in this answer — like this — are the key facts. Each one is unpacked in the Facts & figures rail.

Introduction

Semiconductor ambition and India

Semiconductors are foundational to modern electronics, defence, automobiles and digital infrastructure. India has strong capabilities in chip design and engineering talent, but limited domestic fabrication and a fragmented manufacturing ecosystem. The India Semiconductor Mission (ISM) seeks to bridge these gaps and build a resilient semiconductor ecosystem.

Body

Challenges faced by India's semiconductor industry

  • Limited fabrication ecosystem: India has strong chip-design capabilities but historically lacked commercial-scale semiconductor fabs, limiting domestic manufacturing.
    • Example: India's strength in semiconductor design has not been matched by a comparable domestic wafer-fabrication ecosystem.
  • High capital and infrastructure requirements: Semiconductor fabrication requires very high investment, uninterrupted electricity and large quantities of ultra-pure water. Even small disruptions can cause significant production losses.
    • Example: A fabrication plant requires continuous power and ultra-pure water for wafer-cleaning and manufacturing processes.
  • Concentrated global ecosystem: Semiconductor manufacturing is dominated by a few countries and firms, particularly Taiwan and South Korea, creating high entry barriers for India.
    • Example: India's entry into fabrication requires competing with established global semiconductor manufacturing clusters.
  • Skill and talent gap: India has a large engineering workforce, but advanced semiconductor manufacturing requires specialised skills in fabrication, process engineering, packaging and equipment.
    • Example: Engineering talent needs specialised industry-oriented training for semiconductor fabrication and process engineering.
  • Weak R&D ecosystem: Limited domestic original semiconductor research and technology development constrain India's ability to move beyond design and assembly.
    • Example: Strengthening institutions such as the Semiconductor Laboratory (SCL), Mohali is important for building domestic capabilities.
  • Complex clearances: Semiconductor fabs require multiple technological, environmental and governmental clearances, increasing project complexity and gestation periods.
    • Example: Large semiconductor projects must coordinate technological requirements with multiple regulatory approvals.
  • Import-dependent supply chain: Critical equipment, chemicals, components and technologies remain dependent on imports, exposing the industry to geopolitical and supply-chain disruptions.
    • Example: Dependence on specialised imported equipment and inputs can affect production when global trade or geopolitical conditions change.

Salient features of the India Semiconductor Mission

  • ₹76,000 crore financial support: The Semicon India Programme provides substantial fiscal support for developing semiconductor and display manufacturing capabilities.
    • Example: The programme supports the development of semiconductor and display fabrication capacity in India.
  • Support across the value chain: ISM supports semiconductor fabs, display fabs, compound semiconductors and ATMP/OSAT facilities, rather than focusing only on wafer fabrication.
    • Example: ATMP/OSAT facilities strengthen the downstream assembly, testing and packaging segment of the semiconductor value chain.
  • Design support: The mission includes a Design Linked Incentive (DLI) to support domestic semiconductor design companies and strengthen India's existing design capability.
    • Example: DLI helps India leverage its existing strength in chip design while expanding domestic semiconductor capabilities.
  • Compound semiconductor ecosystem: Support for compound semiconductors such as SiC and GaN helps develop capabilities relevant to EVs, power electronics and telecommunications.
    • Example: SiC and GaN are important for power electronics and advanced telecommunications applications.
  • Attracting global investment and technology: 100% FDI under the automatic route in electronics and semiconductor manufacturing helps attract global capital, technology and expertise.
    • Example: Global investment can bring capital, technical expertise and manufacturing know-how into India's semiconductor ecosystem.
  • Domestic manufacturing ecosystem: ISM aims to develop an integrated ecosystem covering fabrication, packaging, testing, design and associated supply chains, thereby improving technological sovereignty and supply-chain resilience.
    • Example: Developing fabs alongside ATMP/OSAT and design capabilities reduces dependence on a fragmented external supply chain.
  • Strategic partnerships: India is pursuing international cooperation, including the Quad Semiconductor Supply Chain Initiative, to diversify supply chains and strengthen technological partnerships.
    • Example: Cooperation with Australia, Japan and the United States can help strengthen and diversify semiconductor supply chains.

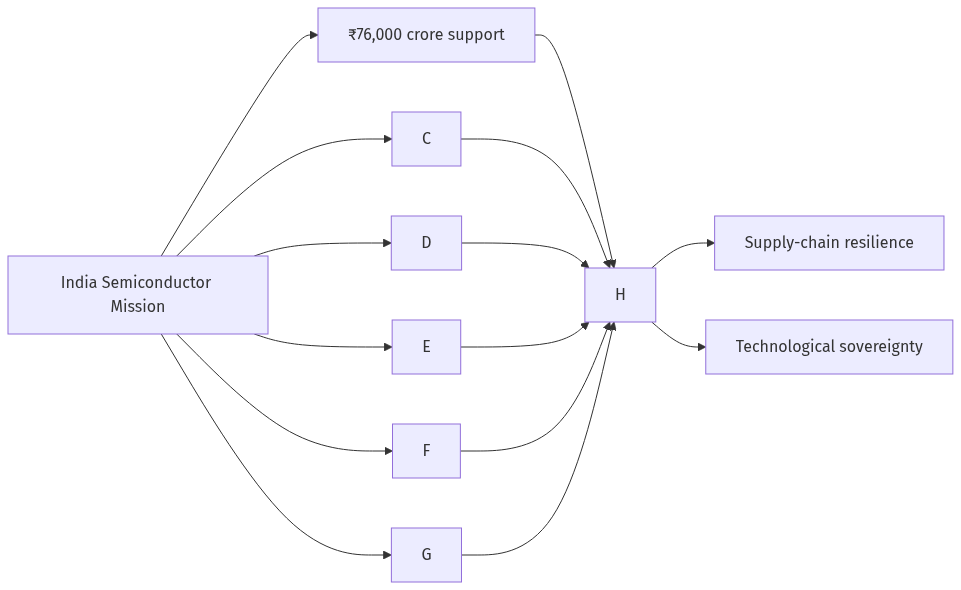

Flow diagram

Flow diagram

Conclusion

India's semiconductor ambitions are constrained by capital intensity, infrastructure requirements, specialised skills, weak fabrication capabilities and import dependence. The India Semiconductor Mission addresses these constraints through ₹76,000 crore support, fab and packaging incentives, design support, compound-semiconductor development and global partnerships, providing the foundation for a resilient domestic semiconductor ecosystem.
